St Columba's Hospice

Boswall Road, Trinity, Edinburgh

Overlooking the Firth of Forth

Page 3.

May 24 + 25 + 28, 2012

Piling Work



Photo 1

Piling

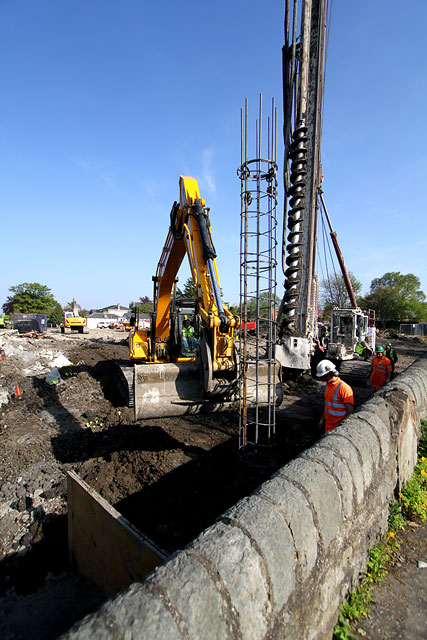

Holes for piles have been drilled by the large piling machine on the right.

Now a  metal cage for a reinforced concrete pile is being lowered
into one of the many holes that have been drilled around the site.

St Columba's Hospice  -  Piling work -  Looking SSE across the site  -  May 2012

©  peter.stubbs@edinphoto.org.uk                                               Photo taken:  May 24, 2012



Photo 2

Piling

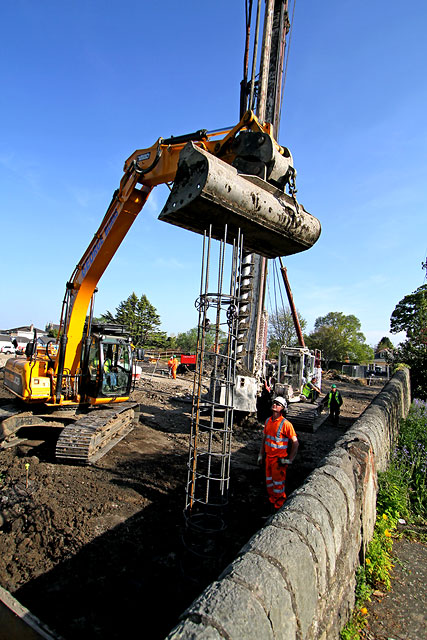

The large digger gives the metal cage a few blows from above

Please email me if you know the correct names for the 'digger' and 'cage'

St Columba's Hospice  -  Piling work -  Looking SSE across the site  -  May 2012

©  peter.stubbs@edinphoto.org.uk                                               Photo taken:  May 24, 2012



Photo 3

Piling

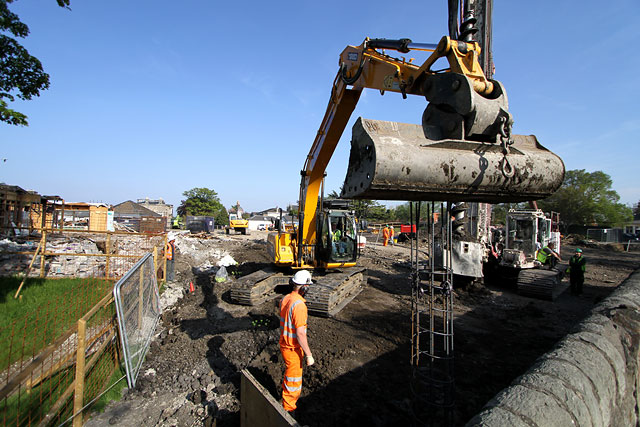

More blows from above from the digger!.  This procedure was repeated many times around the site.

St Columba's Hospice  -  Piling work -  Looking SE across the site  -  May 2012

© Copyright: Peter Stubbs  -   please contact peter.stubbs@edinphoto.org.uk                                                   Photo taken:  May 24, 2012



Photo 4

Piling

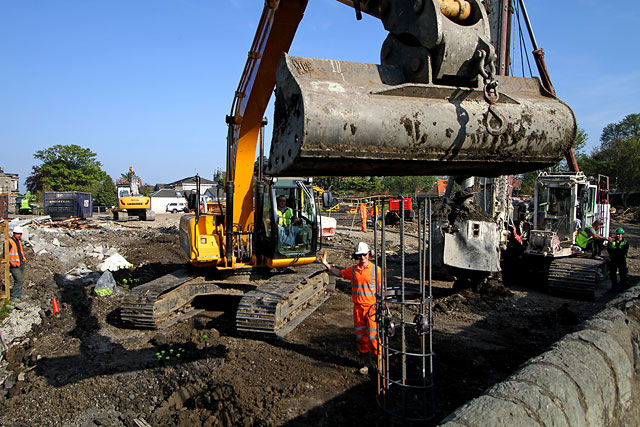

A moment after this photo, the metal cage was fully below ground, and ready for the concrete to be poured in.

St Columba's Hospice  -  Piling work -  Looking SE across the site  -  May 2012

©  Copyright: Peter Stubbs  -   please contact peter.stubbs@edinphoto.org.uk                                               Photo taken:  May 24, 2012



Photo 5

Piling

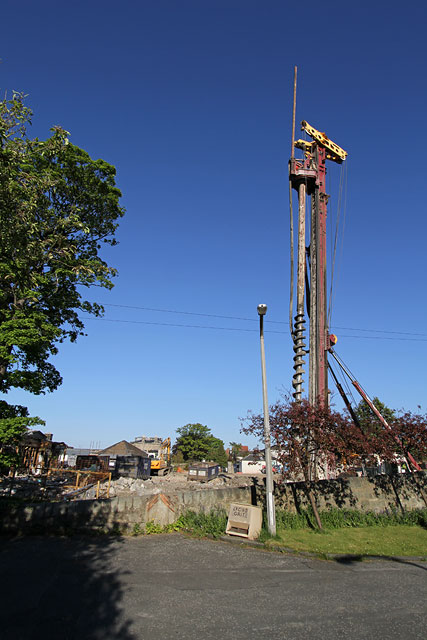

Look at the size of the piling machine, compared to the height of the
lamp post beside the western boundary of the hospice site!

St Columba's Hospice  -  Piling work -  View from the west, May 2012

©  peter.stubbs@edinphoto.org.uk                                            Photo taken:  May 25, 2012



Photo 6

Piling

Piling machine, and view SSE across the hospice site.

St Columba's Hospice  -  Piling work -  looking SSE across the site, May 2012

©  peter.stubbs@edinphoto.org.uk                                             Photo taken:  May 25, 2012



Photo 7

Piling

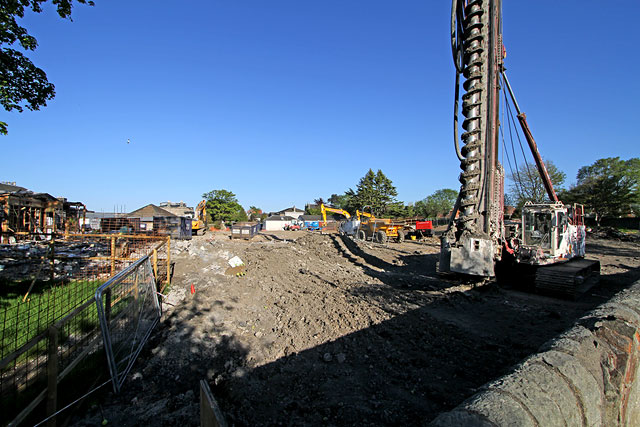

Close up of the drill on the piling machine, and view SE across the hospice site.

St Columba's Hospice  -  Piling work -  looking SE across the site, May 2012

©  Copyright: Peter Stubbs  -   please contact peter.stubbs@edinphoto.org.uk                                                 Photo taken:  May 25, 2012



Photo 8

Piling

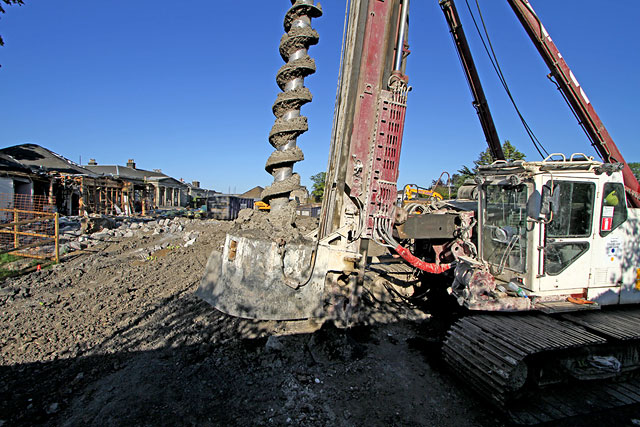

Zoom-in to the piling machine.  Despite its size, this machine appeared to work very gently,
especially when compared to some of the 'hammer action' machines employed on other sites.

St Columba's Hospice  -  Piling work -  View from the west, May 2012

©  Copyright: Peter Stubbs  -   please contact peter.stubbs@edinphoto.org.uk                                               Photo taken:  May 25, 2012



Photo 9

Piling

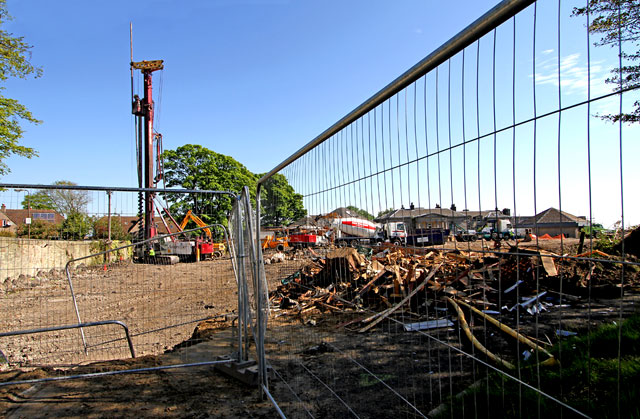

View of the hospice site from the south.
The piling machine has almost completed its work and is soon to leave the site.

St Columba's Hospice  -  Piling work -  View from the south, May 2012

©    Copyright: Peter Stubbs  -   please contact peter.stubbs@edinphoto.org.uk                                               Photo taken:  May 28, 2012
